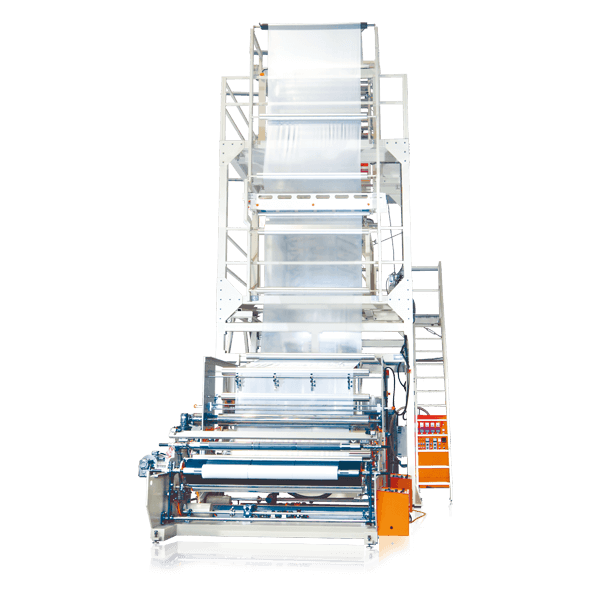

LDPE/LLDPE high speed plastic inflation machineKML-80

Film Width500-2000 mm
Screw Dia.Ø 80 mm
Suitable MaterialLDPE/LLDPE
MODEL KML-80
SUITABLE MATERIAL LDPE/LLDPE
FILM THICKNESS 0.03-0.15 mm
FILM WIDTH RANGE 2000 mm
FILM OUTPUT 200 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 80mm
SCREW L/D RATIO 30:1
HEATING CAPACITY 22.1 kw
AUTO THERMO CONTROL 7 zone
BARREL COOLING FAN 1/8 HP x 5
DRIVING MOTOR AC 75 HP + Inverter
DIE UNIT
DIE DIAMETER Ø500 mm
AIR RING DIAMETER Ø550 mm
HEATING CAPACITY 29.8 kw
AUTO THERMO CONTROL 3 zone
COOLING BLOWER 10 HP
TAKE-UP UNIT
TAKE-UP ROLLER 2200 mm
EFFECTIVE WIDTH 2000 mm
TAKE-UP MOTOR AC 2 HP
TAKE-UP SPEED 45 m/min
ELEVATING MOTOR
WINDING UNIT
ROLLER WIDTH 2200 mm
WINDING WIDTH 2000 mm
WINDING MOTOR DC 2 HP
MACHINE DIMENSION 800×500×900 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
